Ductile Iron Pipe Fittings- 22.5 Elbow
Method: Lost Foam Casting, Sand Casting
Standard: ISO2531, EN545
Type: 22.5 flange elbow.
Coating: Epoxy coating or zinc rich paint coating, or bituminous paint.
100% hydraulic pressure testing.
Size from DN50 to DN2000.

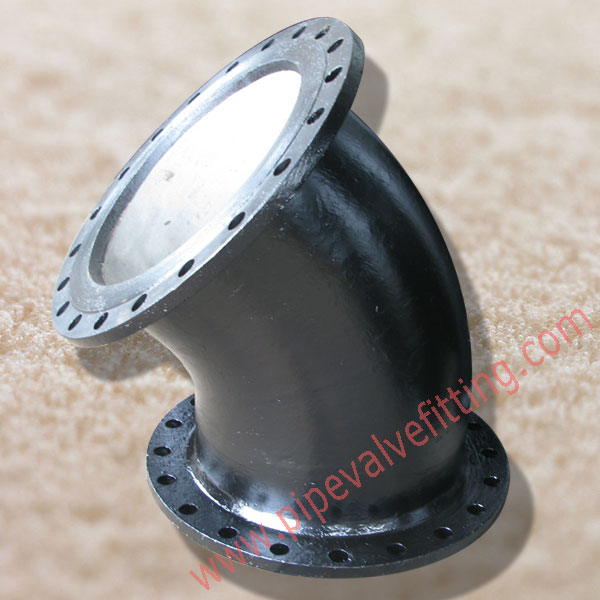

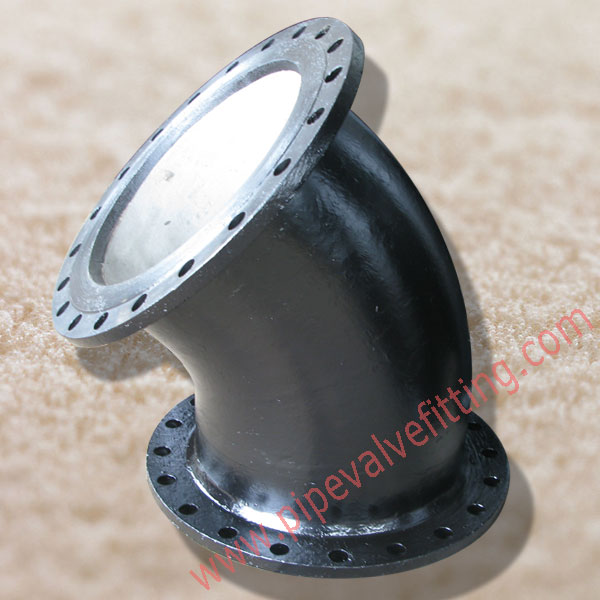

22.5 Elbow- Ductile iron Pipe Fittings
|
DN
|
T
|
L
|
S
|
Double socketWeight(Kgs)
|
Socket SpigotWeight(Kgs)
|
||
|
T Type
|
K Type
|
T Type
|
K Type
|
||||
|
80
|
7
|
40
|
150
|
7.5
|
10.7
|
7.7
|
7.6
|
|
100
|
7.2
|
40
|
150
|
9.5
|
13.5
|
9.8
|
12.2
|
|
150
|
7.8
|
55
|
200
|
15.9
|
22.5
|
16.8
|
19.3
|
|
200
|
8.4
|
65
|
200
|
24
|
30.5
|
25.2
|
27.4
|
|
250
|
9
|
75
|
200
|
33.5
|
40.5
|
35.2
|
36.6
|
|
300
|
9.6
|
85
|
200
|
44.5
|
58
|
46.2
|
51.6
|
|
350
|
10.2
|
95
|
200
|
58
|
71
|
59
|
34.2
|
|
400
|
10.8
|
110
|
200
|
74
|
88
|
79.5
|
84.7
|
|
450
|
11.4
|
120
|
200
|
102
|
105
|
107
|
111
|
|
500
|
12
|
130
|
200
|
111
|
123
|
117
|
119
|
|
600
|
13.2
|
150
|
200
|
157
|
164
|
161
|
159
|
|
700
|
14.4
|
175
|
200
|
248
|
223
|
248
|
240
|
|
800
|
15.6
|
195
|
200
|
331
|
281
|
331
|
308
|
|
900
|
16.8
|
220
|
250
|
432
|
364
|
432
|
417
|
|
1000
|
18
|
240
|
250
|
550
|
463
|
550
|
508
|
|
1100
|
19.2
|
260
|
250
|
637
|
560
|
628
|
515
|
|
1200
|
20.4
|
285
|
250
|
851
|
671
|
851
|
740
|
|
1400
|
22.8
|
260
|
300
|
1241
|
882
|
1241
|
1179
|
|
1500
|
24
|
270
|
300
|
1627
|
1011
|
–
|
965
|
|
1600
|
25.2
|
280
|
330
|
1659
|
1167
|
–
|
1377
|
|
1800
|
27.6
|
305
|
330
|
1663
|
1533
|
–
|
1837
|
|
2000
|
30
|
330
|
400
|
2144
|
1965
|
–
|
2373
|
